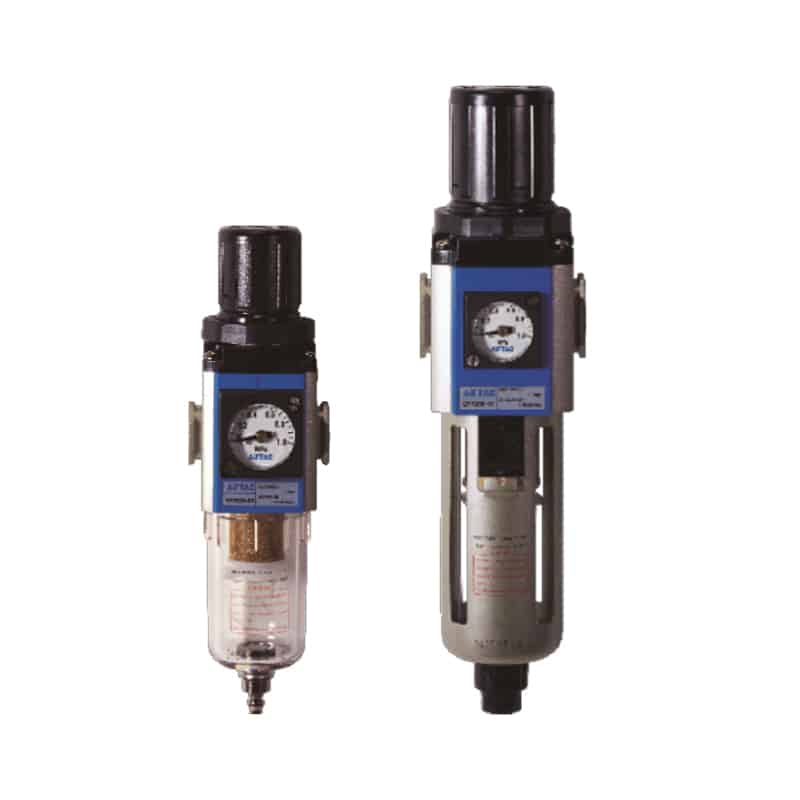

GFR Series

Product feature

1. Embedded square pressure gauge is used to save installation space.
(External circular pressure gauge is also optional).
2. The pressed-in self-locking mechanism can prevent the abnormal movement
of the set pressure caused by external interfere.
3. Balanced design is adopted for the pressure adjustment mechanism.
4. In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa).
5. Unique diversion structure spins the air flowing through to effectively
separate the liquid from the air and reliably filter the solid grain.
6. The filtering grade includes 5 µ m and 40 µ m (optional).
7. Three drain types are available: manual drain, semi-auto drain and automatic drain.
8. The bracket can be selected for installation.


ตัวกรองลมดักน้ำ และตัวปรับแรงดันลม Preparation unit – G Series
