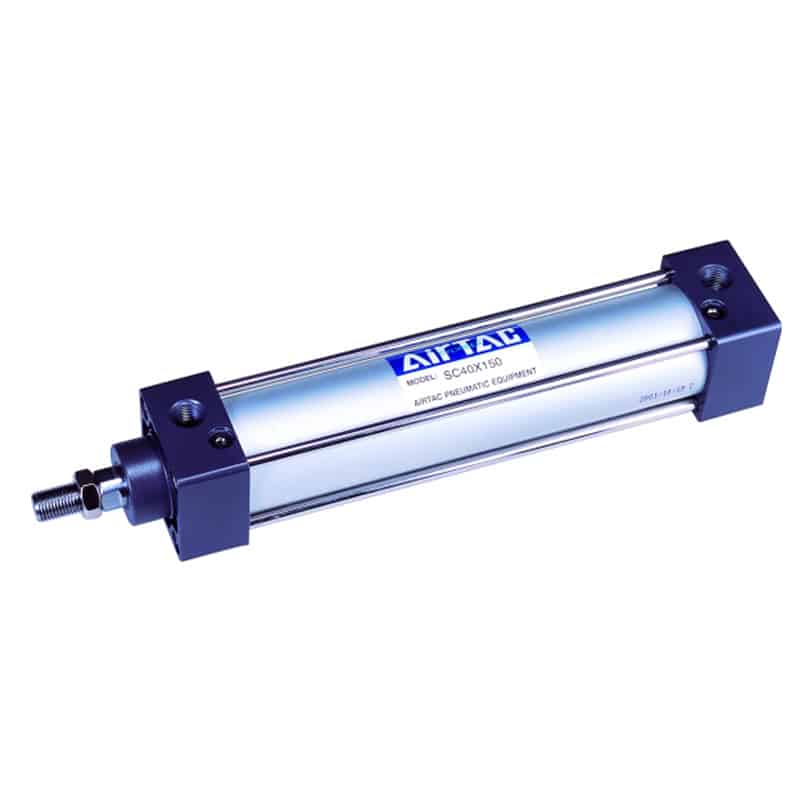

SC Series

Standard cylinder (Tie-rod)

Product feature

1. Standard cylinder manufactured by our enterprise.

2. The seal of piston adopts heterogeneous two way seal structure. It’s dimension is tight and it has the function of grease reservation.

3. It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.


กระบอกลม กระบอกสูบ รุ่น SC Series

4. Compared with ISO15552 standard cylinder , SC series cyilnder with the same bore size is shorter.

5. The buffer adjustment of cylinder is smooth and steady.

6. Cylinders and mounting accessories with several specifications are optional.

7. The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150˚C.
