Fluid control valve – 2S Series (Direct-acting and normally closed)

Product feature

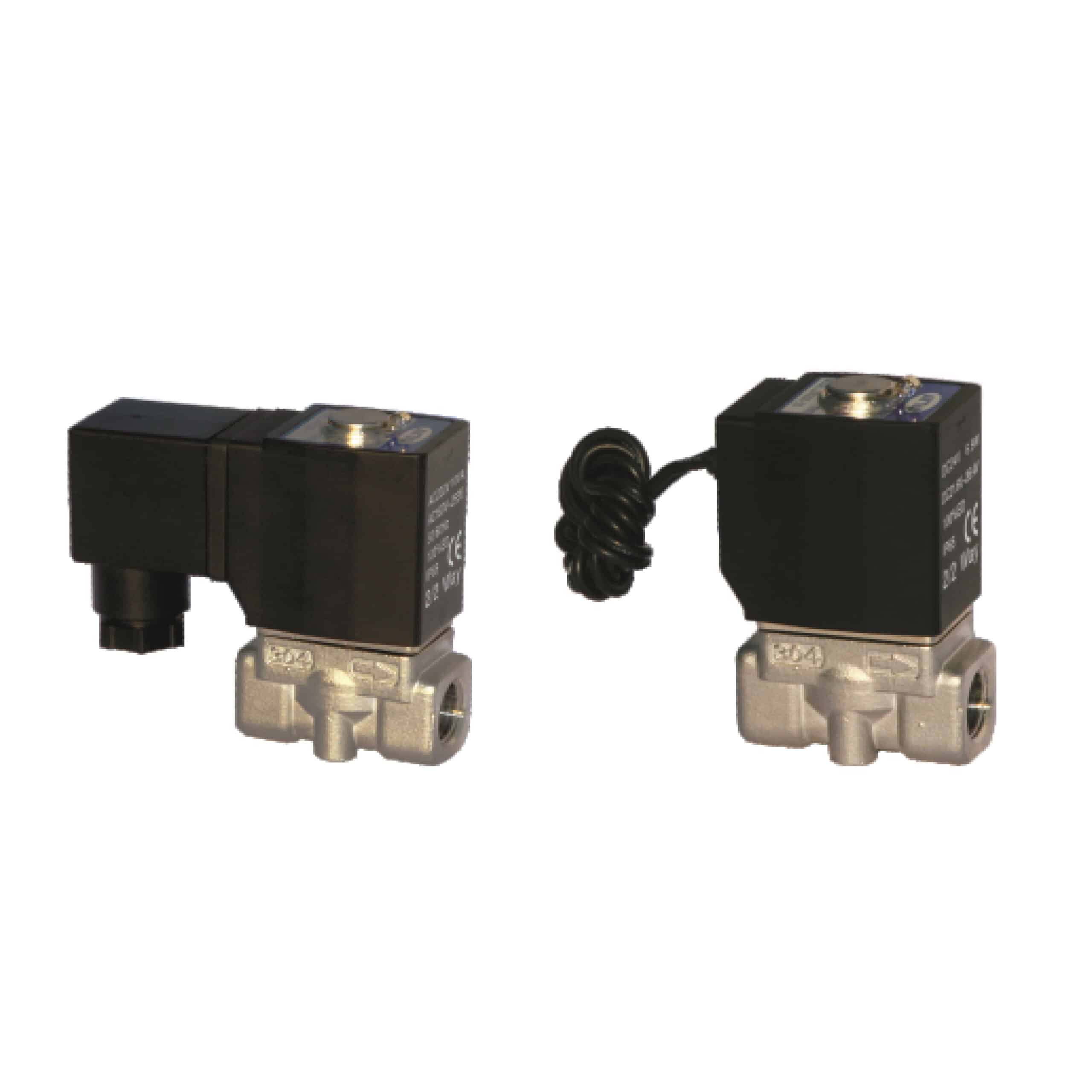

1. Direct acting and normally closed type 2/2 way solenoid valve. Its high sensibilily allows it to change direction quickly;
2. It has wide pressure range, including extra high pressure (X), high pressure (H), standard, large volume(L} and extra large volume (T} to choose from;
3. It is compact, small size and light weight. It is easy to install and dismantle.
4. The valve body is made of SUS304 . Its coil has a
Heat resistance classification of Class B. The standard seal material is FPM-F. Please contact us if other material are required.
5. The protection class of the coil is IP65 and there is a choice for grommet or terminal electrical entry .
Inner structure
